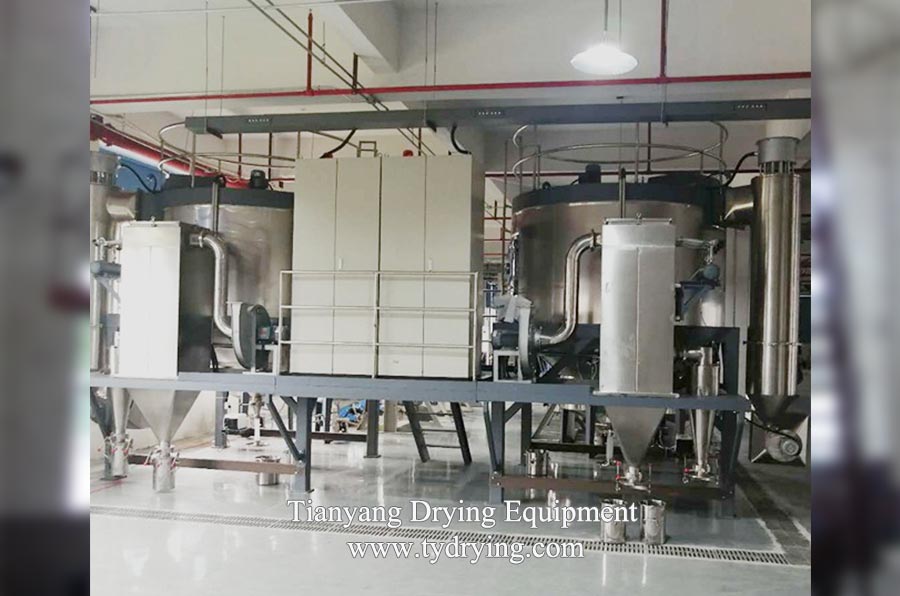

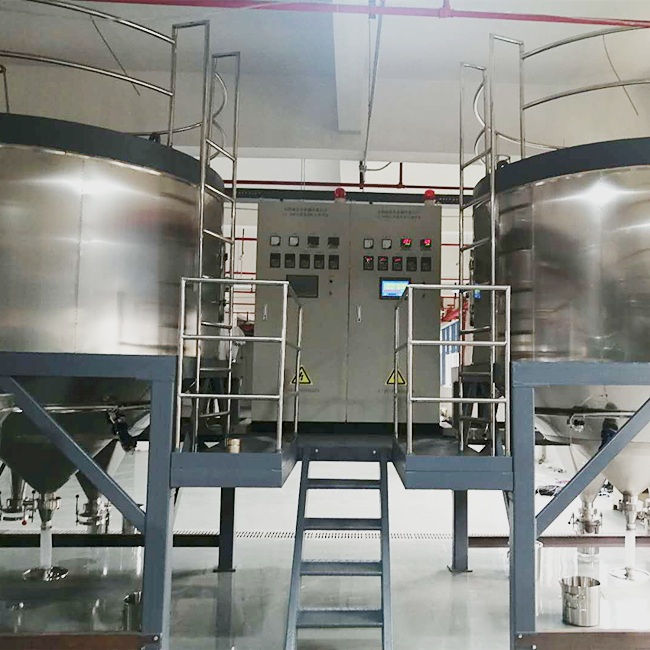

Silicon Carbide Centrifugal Spray Granulation Dryer
Model: LX-10;Material: SUS304, SUS316L;Max. Water Evaporation Capacity: 10kg/h;Heating Method: Electricity + steam, fuel oil, gas, up to the user.


Contact: Mr Tang
E-mail: [email protected]
Mobile Phone: +86-13906177584
Website: www.tydrying.com
Address: Qiangzhou Town,Wuxi City,Jiangsu,China

Whats app:
+8613771018713

Brand Name: TIANYANG

Type: Centrifugal Spray Granulation Dryer

Model: LX-10

Material: SUS304, SUS316L

Max. Water Evaporation Capacity: 10kg/h

Heating Method: Electricity + steam, fuel oil, gas, up to the user.

Applications: Ceramics, magnetic materials, new energy materials, new metal materials, chemicals, etc.

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overseas.



Product Description

Silicon carbide is a high hardness ceramic materials, widely used in high-tech products according to the characteristics of the material on the design of silicon carbide special centrifugal spray granulation dryer. Special dish centrifugal atomizing spray granulation and drying equipment is a kind of continuous atmospheric dryer. Use special equipment to spray liquid into fog, make its contact with the hot air drying. Used for drying of some heat-sensitive liquid, suspending liquid and viscous liquid, are by far the most elected to solid extraction equipment, used in ceramic, electronics and carbide spherical particle materials, ferrite, etc have special requirements.


Working Principle

The working principle of LX series silicon carbide centrifugal spray granulation drying equipment is that the ambient air is sent to the heater through the filter for heating. The granulator is evenly distributed into the drying chamber, and rotates in a spiral shape. At the same time, the material liquid is sent to the high-speed centrifugal granulation atomizer at the top of the drying tower, and is sprayed from the nozzle hole of the atomizing disc to form fine particles under the action of centrifugal force. At this time, the hot air is in contact with the material instantly, and the water evaporates quickly, forming spherical particles in a very short time, which fall to the discharge port at the bottom of the drying tower; some of the finer products enter the cyclone through the exhaust pipe and the exhaust gas. The separator conducts gas-solid separation, which is recovered by the collection barrel set at the bottom of the cyclone separator; the remaining fine powder and tail gas enter the dust collector through the exhaust pipe for secondary gas-solid separation, and the tail gas that meets the local environmental protection tail gas emission standard then passes through The exhaust pipe is vented to the atmosphere.


Technical Parameter

Model

LX-10

Max. Water Evaporation Capacity (kg/h)

10kg/h

Material

SUS304, SUS316L

Inlet Temperature (℃)

230-350

Out Temperature (℃)

90-150

Spray Type

High Speed Centrifugal Atomizer

Applications

Electronic material, ceramics, magnetic materials, new energy materials, new metal materials, chemicals, etc.

Atomization Rotated Speed (RPM)

0-18000

Spray Disc Diameter (mm)

55-65

Heating Method

Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc.

Remarks: Water evaporation capacity depends on material property, solid content, inlet & outlet temperature.


Product Advantages

Because the spray forms of the LX series high-speed centrifugal spray granulation drying machine and the YT series pressure spray granulation drying equipment are different, the dried products are also different, because the dried products of the YT series drying equipment have a shrinkage hole in the middle, which is hollow. Apple-shaped, in the process of pressing and sintering, the yield of the LX series dryer is higher than that of the LX series dryer. The dried product is a complete spherical shape, and the consistency of fluidity, loose-pack ratio and particle size is better than that of YT The series of drying equipment is much better, especially in precision ceramics, metal materials, and electronic materials. In addition, because the height of the LX series of dryers is much lower than that of the YT series of dryers, it can also be a little lower than the installation equipment workshop. The consumption is also low, the operation is simple, convenient and safe, and it is easy to transport and install.
