Brand Name: TIANYANG

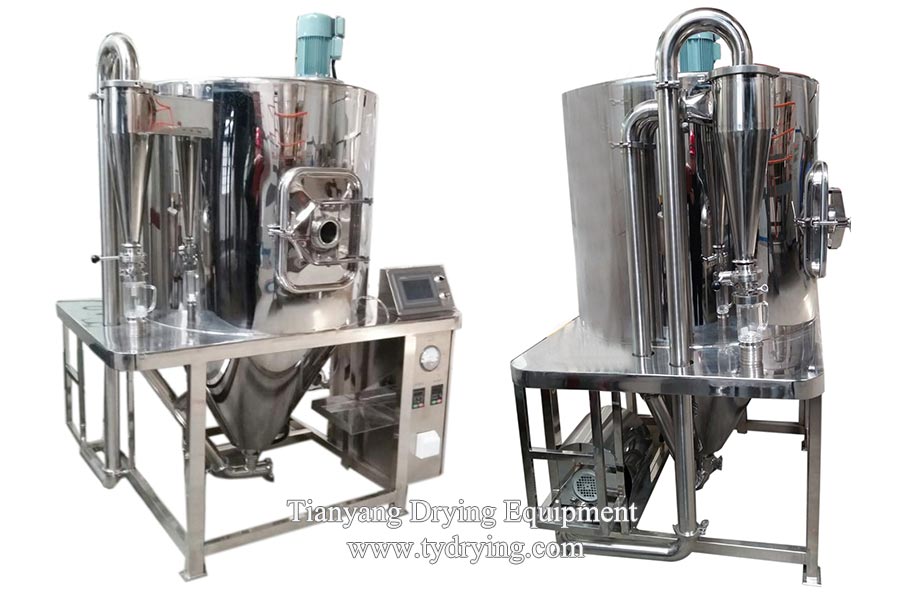

Type: Lab Scale Spray Dryer

Model: LT-5

Material: SUS304, SUS316L, Ti

Max. Water Evaporation Capacity: 5kg/h

Heating Method: Electric heating

Applications: Chemicals processing, food processing

Warranty: One year

Product Description

The spray volume is 1-5 kg/h. Utilizing the frequency control centrifugal atomizer, the LT-5 lab scale spray dryer for powders can dry materials such as solutions, emulsions, suspending liquids and paste liquids into powders. Fixed or movable structure is alternative, and it is flexible and convenient with high speed and high efficiency. It is suitable to heat-sensitive materials.

LT series lab spray dryer has been used in enterprises, colleges and universities, scientific research institutions and other industries. According to the characteristics of different products of users, it can explore the ideal process conditions of its spray drying through experiments, which has laid a solid foundation for the industrial production of products.

Working Principle

After being sent into the centrifugal atomizer by a feed pump, the freed liquid is then atomized into droplets. Heat-exchange carries out between the droplets and hot air, and material is dried into powder in a very short time. powder is collected by a barrel at the bottom of the tower or cyclone separator. LT-series lab scale spray drying machine is an ideal device to dry feed liquid into powder for one-time continuous production.

Technical Specifications of Lab Spray Drying Equipment

Key Features

* Short drying time, suitable especially for thermal sensitive material and high viscosity material like medical concentrate.

* Easy operation, convenient adjusting, easy to disassemble and clean.

* Various particle size available by adjusting the spray rpm, spray disc, liquid concentrate and air etc.

* Can get various final moisture by adjusting the spray volume and outlet air temp.

* Multiple dust collector used to ensure no material loss.

Application Drying Material
